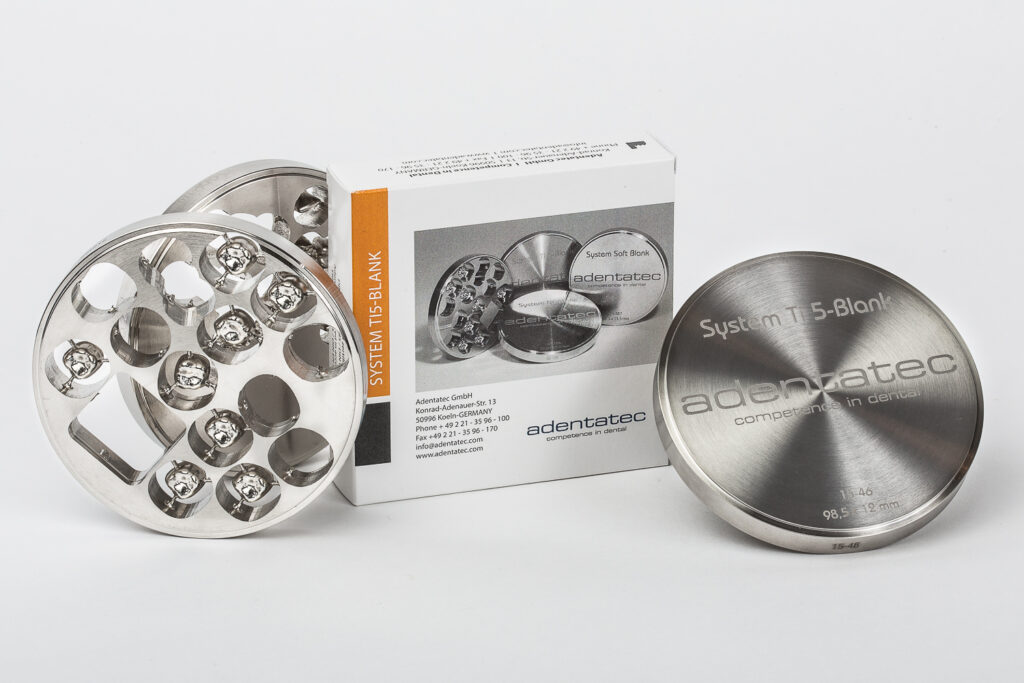

SYSTEM TI 5-BLANK

SYSTEM TI 5-BLANK is a non-precious dental milling alloy on Ti6Al4V, grade 5.

SYSTEM TI5-BLANK is intended for the use of crowns, bridges and implant supported structures.

SYSTEM TI5-BLANK has a proofed biocompatibility according DIN EN ISO 10993 with a good corrosion resistance.

Typical material properties

Yield strength 0,2 % (MPa)816
Elongation (%)8
Tensile strength (MPa)885
E-module (GPa)174
Density (g/cm³)4,4
Corrosion resistance (µg/cm²)< 200
CTE (25 – 500°C) (10⁻⁶ K⁻¹)10,3
Hardness HV 10/30318
Max. firing temperature (°C)max. 800
Delivery form (mm)
(X) = 8/10/12/14/15/16/18/20/25/27
Ø 98,5 x (X)
Ø 99,5 x (X)
Applied NormsDIN EN ISO 22674:2016
ASTM F 136 (z.T.) / DIN EN ISO 5832-3:2012 (z.T.)

Lot numbers may show minimum deviation from typical values.

More information are available on our instruction for use.

Typical composition %

TiAlVOFeCNH
Bal.5,5 – 6,53,5 – 4,50,130,250,080,050,012
