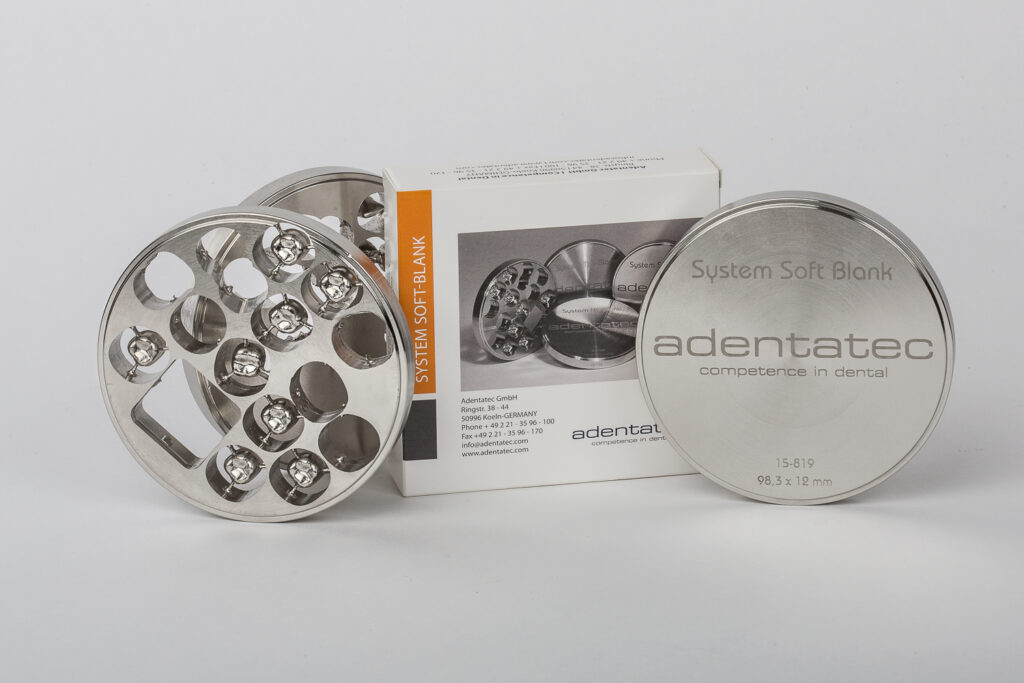

SYSTEM SOFT BLANK

SYSTEM SOFT-BLANK is a non-precious dental milling alloy on cobalt-base, type 4.

SYSTEM SOFT-BLANK has a high corrosion resistance and biocompatibility.

SYSTEM SOFT-BLANK is suitable for laser welding.

SYSTEM SOFT-BLANK is especially soft, good to mill and homogeneous.

SYSTEM SOFT-Blank is compatible to all high-fusing ceramics.

Typical material properties

Yield strength 0,2 % (MPa)440
Elongation (%)14
E-module (GPa)210
Tensile strength (MPa)819
Density (g/cm³)8,55
Corrosion resistance (µg/cm²)< 200
CTE (25 – 500°C) (10⁻⁶ K⁻¹)~14,1
Hardness HV 10/30275
Max. firing temperature (°C)~ 980
Dimensions (mm)
(X) = 8 / 10 / 12 / 13,5 / 14 /15 / 16 / 18 /20 /24,5
Ø 98,3 x (X)
Ø 99,5 x (X)
Type DIN EN ISO 22674:2016≥ Type 4 as delivered

Lot numbers may show minimum deviation from typical values.

More information are available on our instruction for use.

Typical composition %

CoCrWSiFeMnno other
elements
61,6527,758,451,610,20,25> 0,1
